Oil Pressure
Item: 6033

Please note that this product is now Item 5033. Please see 5033 for information on this Oil Pressure gauge.

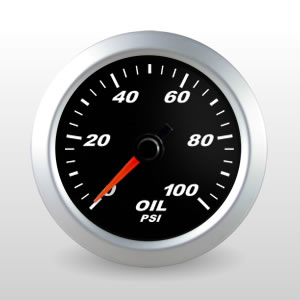

SCX Pro Black Oil Pressure Gauge with Peak Recall and Programmable High and Low Full Dial Warning

Technical Documents
Technical Documents
Installation Instructions: SCX Oil Pressure (PDF)
  Products > SCX Pro
Oil Pressure
Item: 5033

Gauge Type: Oil Pressure
Gauge Range: 0-100 PSI
Sender Included: Yes

Case Diameter: 2-1/16" (52mm)
Movement: 270° STEPPER MOTOR
Gauge Face Color: Black
Gauge Number Color: White
Lighting Type: Through Dial LED
Lighting Color: White and Amber
Pointer Color: Red
Bezel Color: Silver

Peak Recall and User Programmable Full Dial Alarm



This gauge features one-touch peak recall and programmable high and low full dial alarm. There is also an external alarm output (12V, 500mA) that can be used to activate an external warning light when an alarm condition exists.

Peak recall and programmable full dial warning are accessed via the included remote mount push button.

Marshall Instruments
SCX Pro
Rev. 1/1/2010
