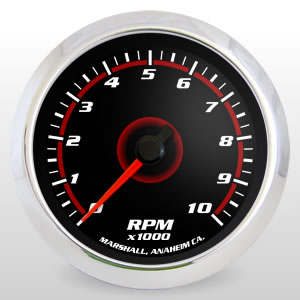

3-3/8" Tachometer
Item: 6251

3-3/8" Tachometer SCX Redline from Marshall Instruments

Technical Documents
Technical Documents
Installation Instructions: In-Dash Tachometer (PDF)

FAQs
Frequently Asked Questions


Bezel Options
This item is available with the following bezel options:
  • Silver Aluminum Bezel (Standard, no part number suffix)
  • Black bezel (add BLK suffix to part number)
  • Polished stainless steel bezel (add SS suffix to part number)
  • Polished stainless steel step bezel (add STP suffix to part number)
  Products > SCX Redline
3-3/8" Tachometer
Item: 6251

Through-Dial LED Lighting
SCX Redline gauges include sophisticated 2 color white and amber through-the-dial LED lighting.

White Through-Dial LED Lighting Amber Through-Dial LED Lighting

Movement: 270° STEPPER MOTOR
Gauge Face Color: Black
Gauge Number Color: White
Lighting Type: Through Dial LED
Lighting Color: White and Amber
Pointer Color: Red
Bezel Color: Chrome

Peak Recall and User Programmable Full Dial Alarm



This gauge features one-touch peak recall and programmable high and low full dial alarm. There is also an external alarm output (12V, 500mA) that can be used to activate an external warning light when an alarm condition exists.

Peak recall and programmable full dial warning are accessed via the included remote mount push button.

Marshall Instruments
SCX Redline
Rev. 10/5/2011
