Model A - 4" Dial
Item: MD-A

McDaniel 4" All Stainless Steel Gauges with 1/4" NPT Connection

Technical Documents
Technical Documents
McDaniel All Stainless Gauges (PDF)

FAQs
Frequently Asked Questions

  Products > McDaniel Pressure Gauges
Model A - 4" Dial
Item: MD-A

All Stainless Construction, Laminated Safety Glass Lens, designed and manufactured to minimize failure and to protect personnel and property.

Standard and optional features

Dial size: 4 inch (100mm)
Fillable: No
Connection: 1/4" NPT only
Case: 304 Stain.Steel
Internals: 316 Stain.Steel
Wetted parts: 316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube
Accuracy: 1/2% FULL SCALE ASME B40.1 Grade 2A
(Up to 10,000psi, 15,000psi above 1%)
Ranges: 30"Hg-0-160psi or 30"Hg-0-300psi
Mount: Standard Bottom Connection , L-Lower back connection (without panel mount flange) , P-Front Flange Panel Mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp
Scale: NH3 - Equivalent ammonia temperature scales
Options:
Standard: All Stainless Steel Construction, Laminated Safety Glass Lens, designed and manufactured to minimize failure and to protect personnel and property.

Dimensional Drawings

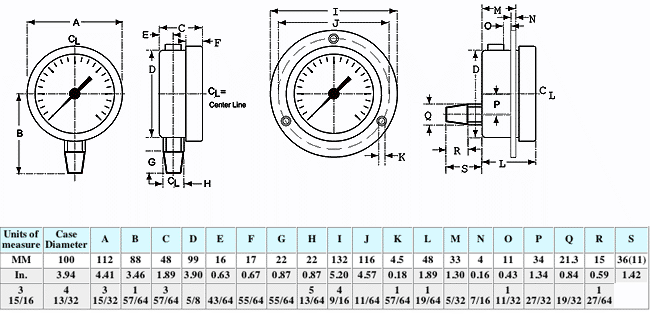

Dimensional Drawings for McDaniel Model A - 4" Dial

McDaniel
McDaniel Pressure Gauges
Rev. 11/20/2008
