Model J
Item: MD-J

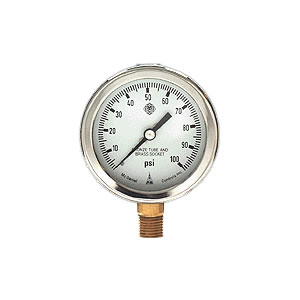

McDaniel 2.5" Gauge, Stainless Case, 1/4" NPT Connection, Fillable w/ Blowout Relief

Technical Documents
Technical Documents
McDaniel General Service Gauges (PDF)

FAQs
Frequently Asked Questions

  Products > McDaniel Pressure Gauges
Model J
Item: MD-J

General Service Gauge, Cost advantage of brass internals - proven ruggedness and accuracy of McDaniel engineering. Stainless Steel Case, Blowout relief, Laminated safety glass Lens

Standard and optional features

Dial size: 2 1/2 inch (63mm)
Fillable: Yes
Connection: 1/4" NPT (1/8" NPT Special Order)
Case: 304 Stain.Steel
Internals: Brass
Wetted parts: Brass/bronze wetted parts
Accuracy: 1% full scale ASME B40.1-Grade 1A
Ranges: Vacuum, Rec., Compound, 0-6000 psi
Mount: Standard Bottom Connection, L-Lower back connection (without panel mount flange), P-Panel mount/lower back connection, R-Rear Flange-(For Wall Mounting), U-Panel Mount/lower back u-clamp
Scale: B=psi/Bar(dual scale), K=psi/kPa(dual scale),psi/kg/cm2(dual scale)
Options: O2(cleaned for oxygen service)
Choice(s) of filling: GF=Glycerin, SF=Silicone, or FF=Fluorolube
Standard: 304 Stainless Steel Case and bayonet ring, Blow-out relief, Fillable case, Laminated safety glass lens, pulsation dampened with restrictor screw, field repairable.

Dimensional Drawings

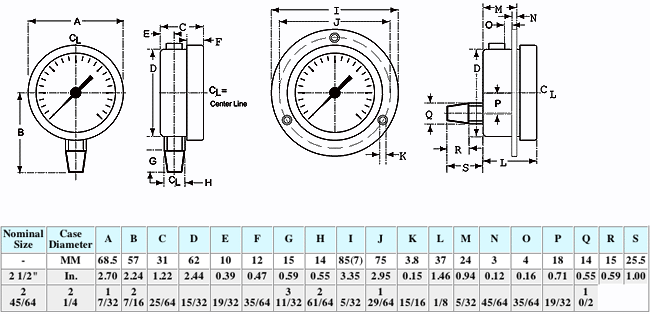

Dimensional Drawings for McDaniel Model J

McDaniel
McDaniel Pressure Gauges
Rev. 11/20/2008
