Model T - 2" Dial
Item: MD-T

McDaniel 2", 1/4" NPT Connection, Fillable All Brass Gauge with Safety Blowout

McDaniel General Service Gauges (PDF)

Frequently Asked Questions

Products > McDaniel Pressure Gauges
Model T - 2" Dial
Item: MD-T

McDaniel General Service Gauges, Cost advantage of brass internals - proven ruggedness and accuracy of McDaniel Engineering. Heavy duty die-cast solid brass case, safety blow-out disc with case vent, screwed front ring, Laminated safety glass Lens, Fillable case, field repairable with only a screw driver needed for disassembly.

Standard and optional features

Dial size: 2 inch (50mm)

Fillable: Yes

Connection: 1/4" and 1/8" NPT (Specify for 1/8")

Case: Cast Brass

Internals: Brass

Wetted parts: Brass/bronze Bourdon tube (Alloy steel over 800 psi)

Accuracy: 1% FULL SCALE ASME B40.1 Grade 1A

Ranges: Vacuum, Rec., Compound, 0-6,000 psi

Mount: L-Lower back connection (without panel mount flange), U-Panel Mount/lower back u-clamp

Scale: B=psi/Bar(dual scale), K=psi/kPa(dual scale), psi/kg/cm2(dual scale)

Options: O2(cleaned for oxygen service)

Choice(s) of filling: GF=Glycerin, SF=Silicone, or FF-Fluorolube

Standard: Fillable, heavy duty die-cast solid brass case, safety blow-out disc with case vent, screwed front ring, Laminated safety glass Lens, Fillable case

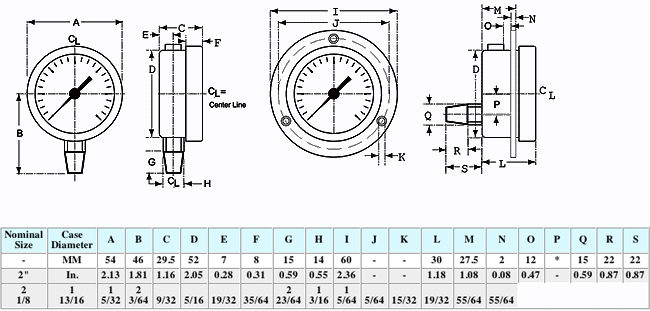

Dimensional Drawings for McDaniel Model T - 2" Dial

McDaniel
McDaniel Pressure Gauges
Rev. 11/20/2008
