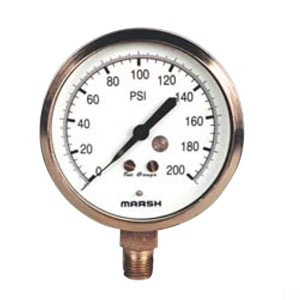

Precision Service - Inspector Test Gauge
Item: INSPECTOR

Inspector's Test Gauges are specifically designed for use by steam boiler, air brake, and pressure system inspectors.

  • Accuracy ASME Grade 2A = ± 0.50% full scale
  • Case Size 3” diameter
  • Case Material: Plated, polished nickel case
  • Case Style: Plain case with threaded ring (Lower mount only)
  • Tube & Socket: Copper alloy tube and socket
  • Movement: All Brass
  • Connections: ¼" NPT; lower mount
  • Ranges: 0 to 30” Hg vacuum; 15 to 1,000 psi
  • Standard Dial: Dual scale psi and kPa
  • Dial Color: Black markings on white
  • Pointer: Knife-edge pointer
  • Window: Beveled glass
